USAGE OVERVIEW

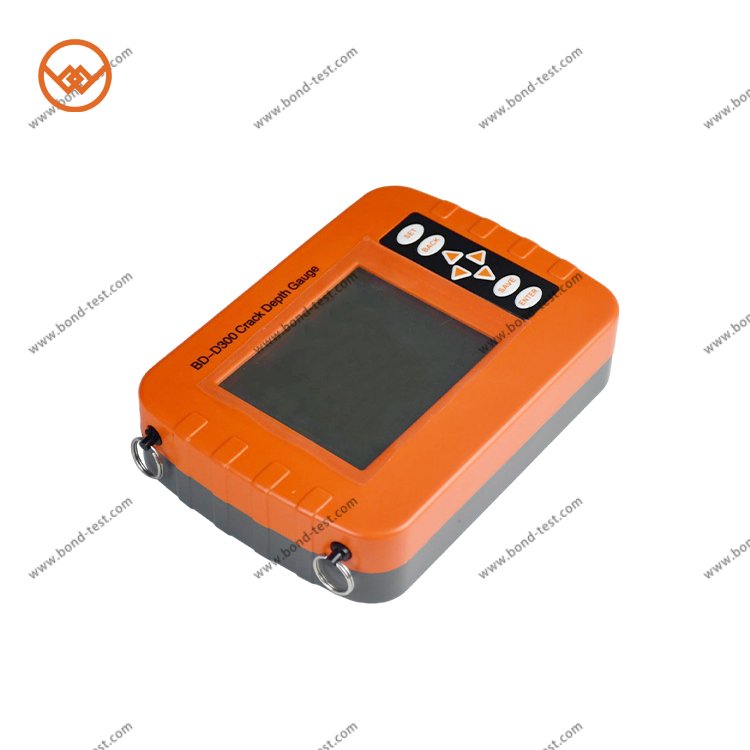

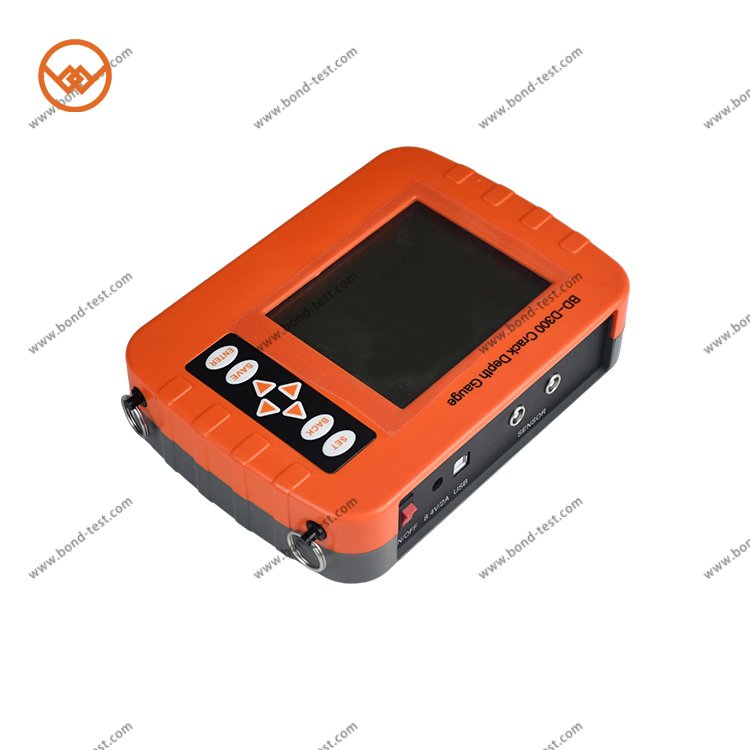

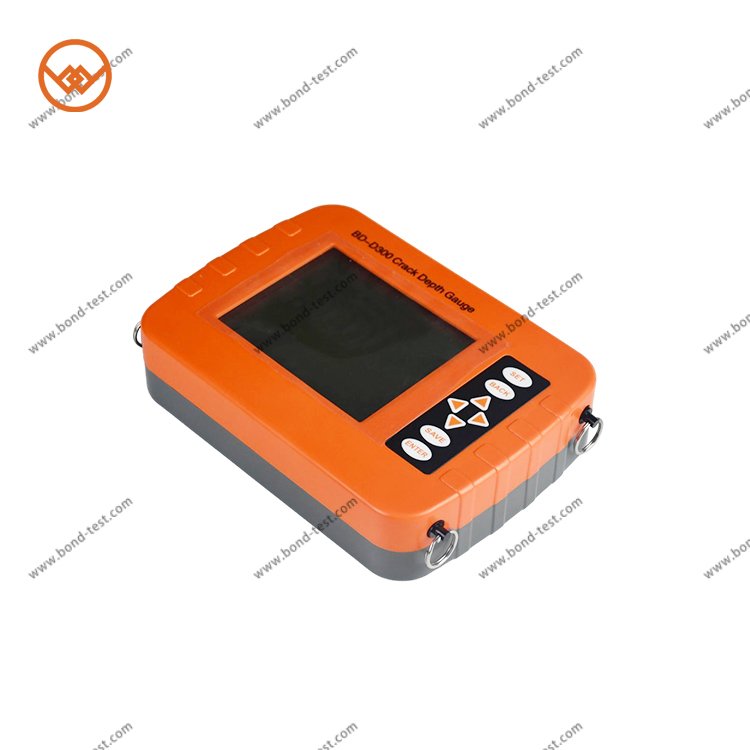

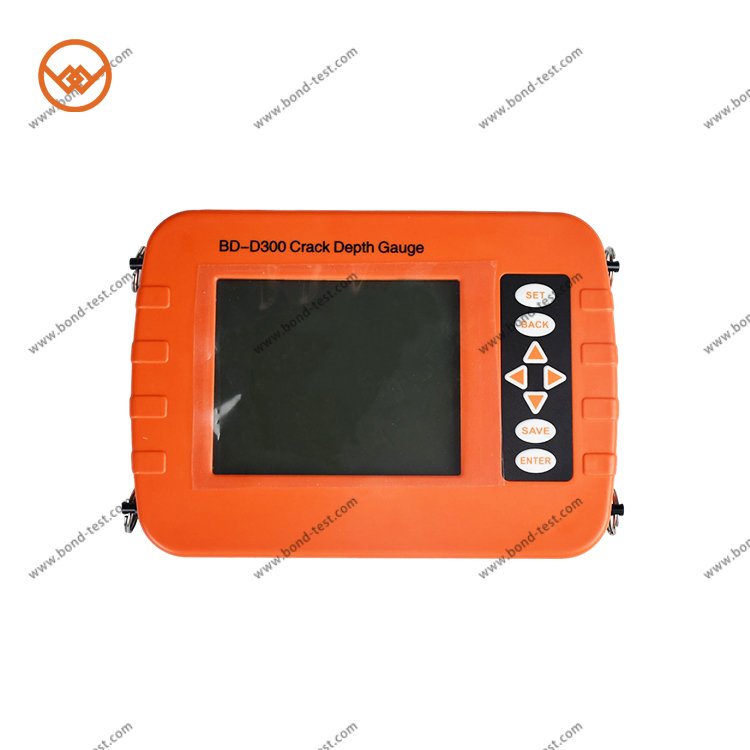

D300 Crack depth gauge is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.
PRODUCT FEATURES
1.New upgraded wireless cloud transmission function;
2.It adopts three anti-shell designs, waterproof, dustproof, and shockproof;
3.On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;
4.The instrument is easy to operate, fast to master, no need for professional knowledge;
5.High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.

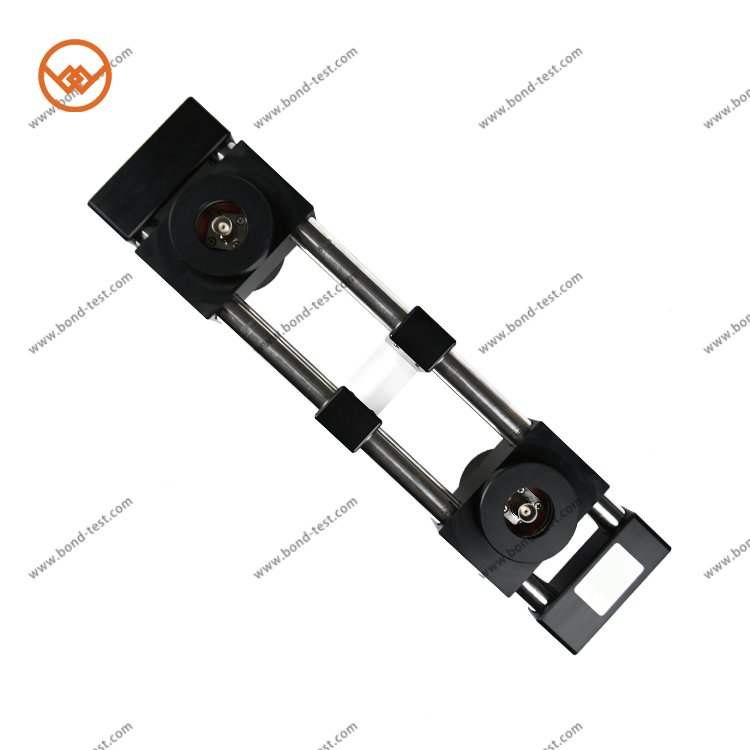

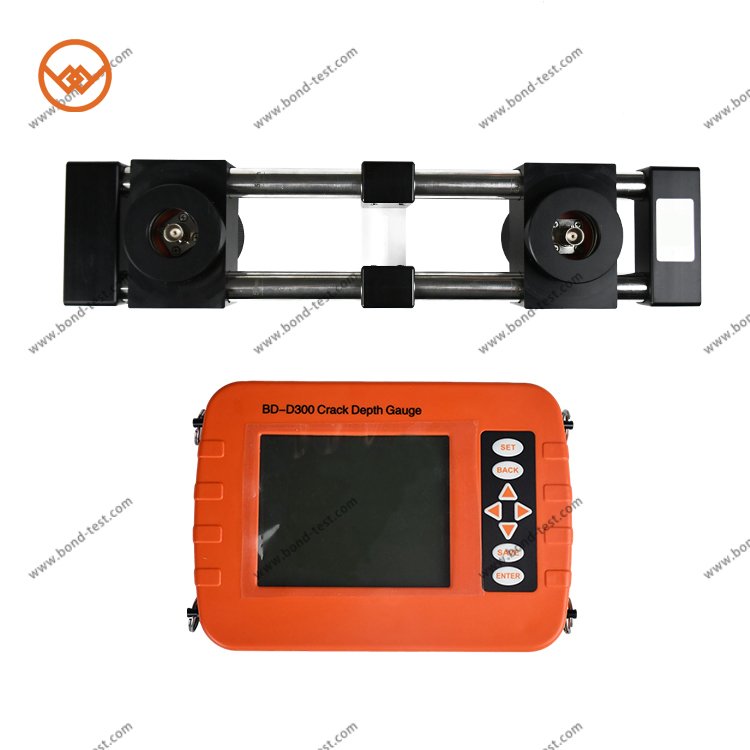

6.Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.
TECHNICAL PARAMETERS
| Product Model | FSY |
| Host parameter | Waterproof level: IP65 Screen size: 5 inches |
| Crack depth test range | 5~500mm |
| Test error | ≤5mm or 2% to 10% of the actual depth |

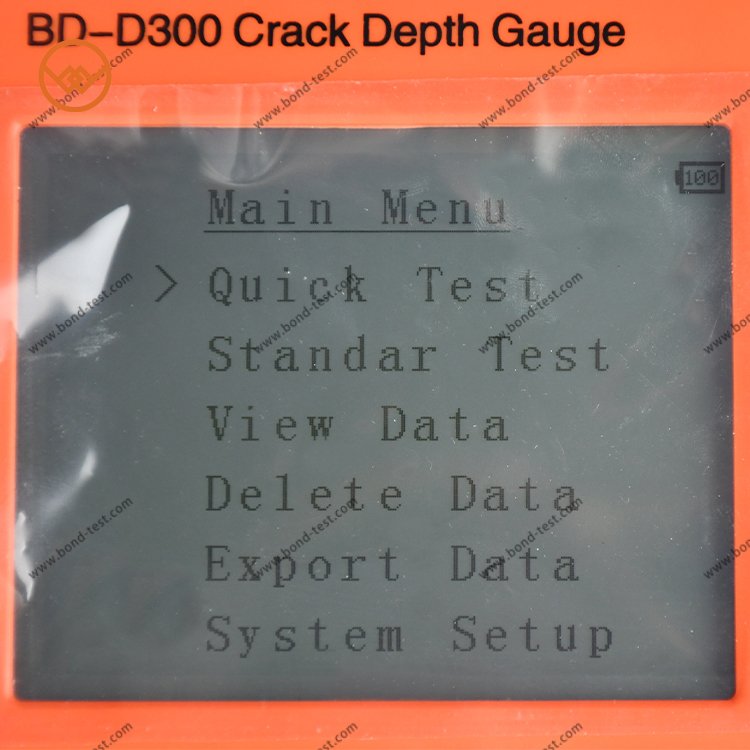

| Measurement method | Standard measurement fast measurement (quick test stand) |
| Data transmission interface | USB |
| Data storage capacity | 20.000 sets |
| Data transmission method | Wireless cloud transmission (optional) |
| Power supply | Large-capacity lithium battery |
| Working environment | Temperature: -10℃~40℃ Humidity: <90% RH |
