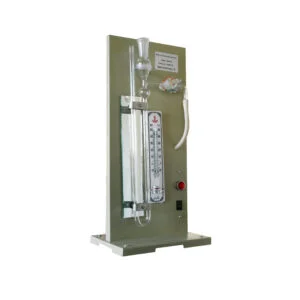

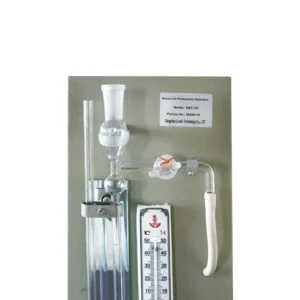

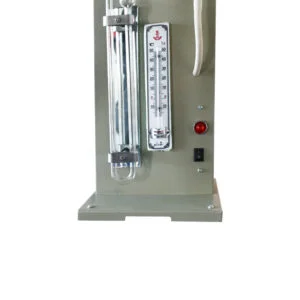

This instrument is mainly made in accordance with the relevant provisions of the national
standard GB8074–87 Determination method of cement specific surface area-Bureau’s method, and with reference to the AmericanASMTC204–75 air permeability improvement.
The basic principle is to use a certain amount of air to measure the resistance when passing through a compacted powder layer with a certain porosity and a certain thickness. It is widely used in the determination of cement, ceramics, abrasives, metals, coal, food. , the specific surface area of powder materials such as gunpowder.
|
Diameter of inner cavity of ventilating cylinder
|
φ12.7+0.05mm
|
|
The height of the sample layer in the inner cavity of the breathable circular Jane
|
15±0.5mm
|
|
The number of perforated plate holes
|
35
|
|
Perforated plate aperture
|
φ1.0rmm
|
|
Perforated plate thickness
|
1-0.10mm
|
|
Voltage
|
220V, 50Hz
|
|
Dimensions
|
460mm X 220mm X 170mm
|
