USAGE OVERVIEW

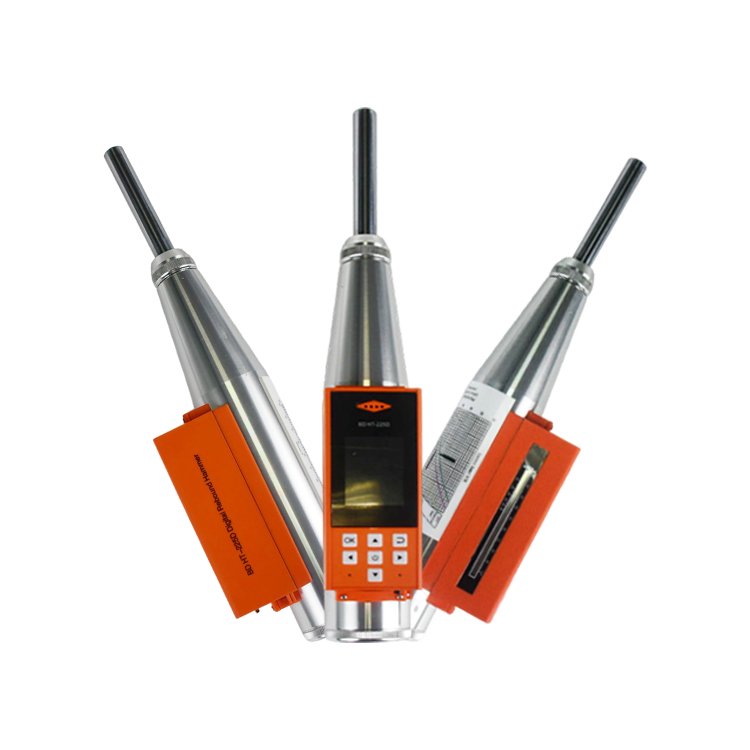

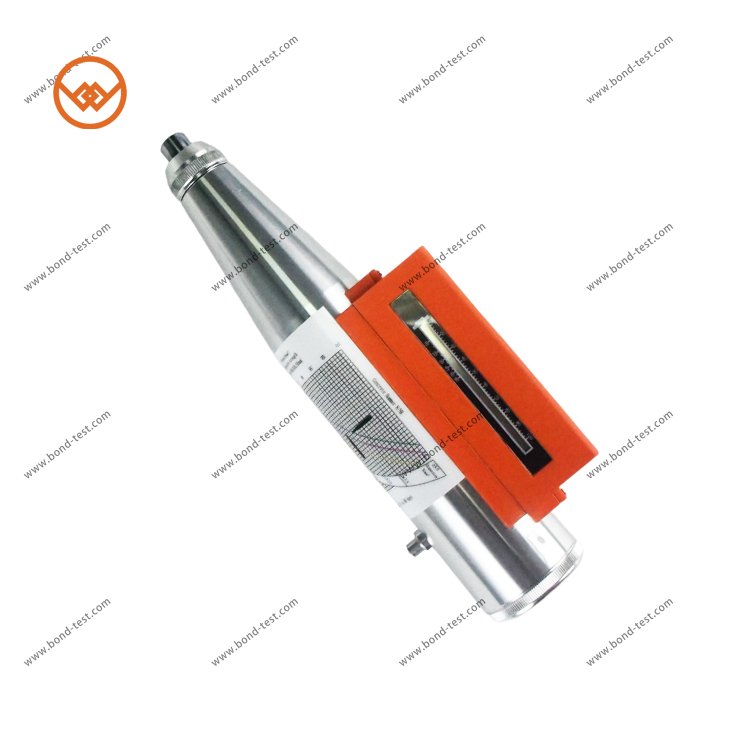

BD HT-225D Integrated Schmidt hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
PRODUCT FEATURES
1.Integral design, compact size;2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable.3.The machine matches the national and local curves and can be set and selected by itself.4.The parameters of angle, test surface, pumping and carbonization can be set on site.5.Optional micro printer to print test results on site;6.Ultra-low power design, continuous use of power supply for 8 to 10 hours;7.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.
| Sensor | MOS image sensor | Mechanical Rebound Tester | Range of strength measurement | 10- 60Mpa | |
| Data Acquisition Terminal | Input mode | Automatically record rebound value | Nominal kinetic energy | 2.207J | |
| Data processing | Automatic data revision. calculation and analysis | Stiffness of Spring Strike | 7.84N/cm | ||

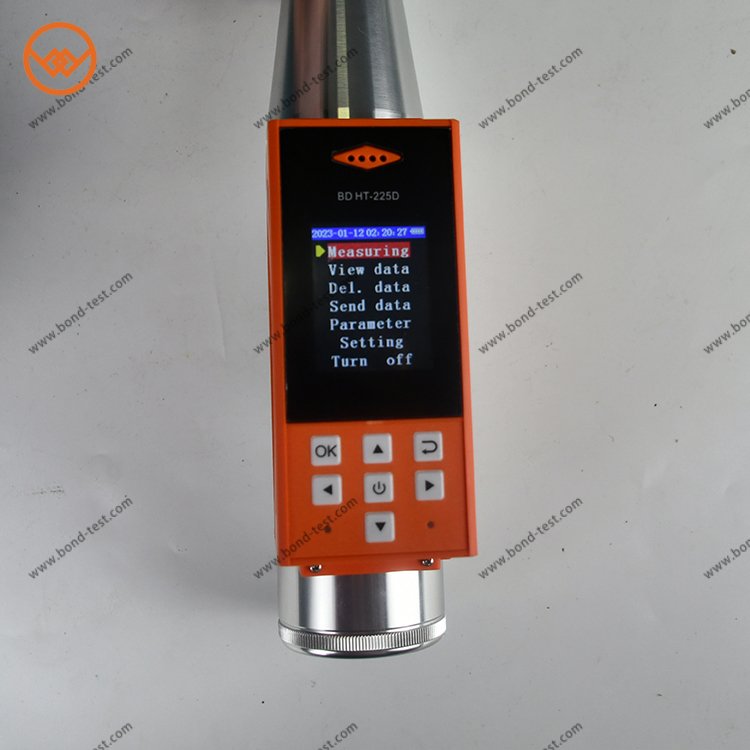

| Display mode | LCD | Hammer stroke | 75mm | ||
| System capacity | 200,000 measuring points | Indicative Consistency error | < ±0.5 | ||
| Power mode | Rechargeable large capacity lithium battery | Calibrated rebound
value of steel anvil |
80±2 | ||
| Working environment temperaturet | -10℃-45℃ | ||||
| Humidity of working environment | < 90%RH | ||||
