Features

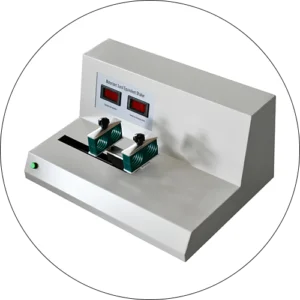

This instrument is suitable for asphalt mixture and cement concrete. It uses natural sand, stone chips, and its aggregate maximum particle size does not exceed 4.75mm to determine the content of cohesive soil or impurities in the fine aggregate to assess the cleanliness of the aggregate.
Technical Parameter
| Voltage | 220V±10% 50Hz |
| Power | 90W |
| Oscillation frequency | 180times/min |
| Amplitude | 203mm |
| Automatic timing | Arbitrarily set |
| Dimensions | 560x320x360mm |
| Test tube inner diameter/height | 32±0.25mm/420±0.25mm |
| Outer diameter/inner diameter of flushing pipe | 6±0.5mm/4±0.2mm |
