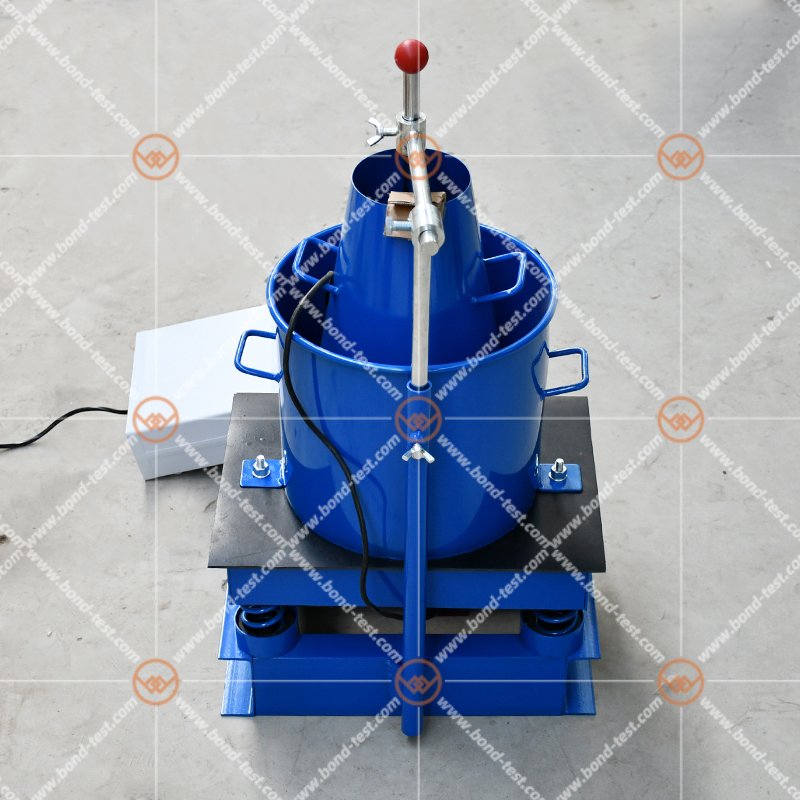

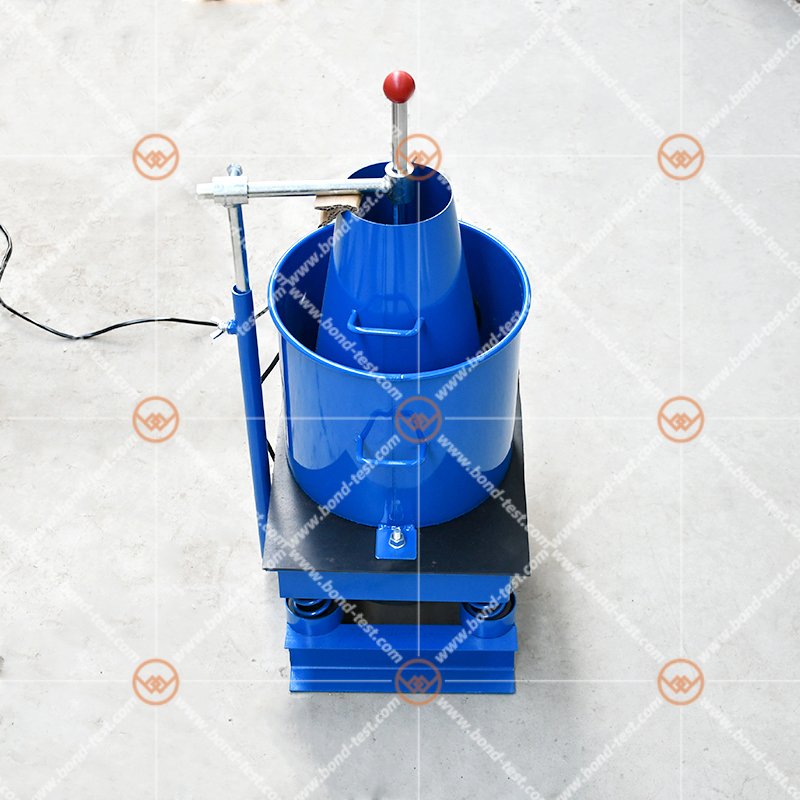

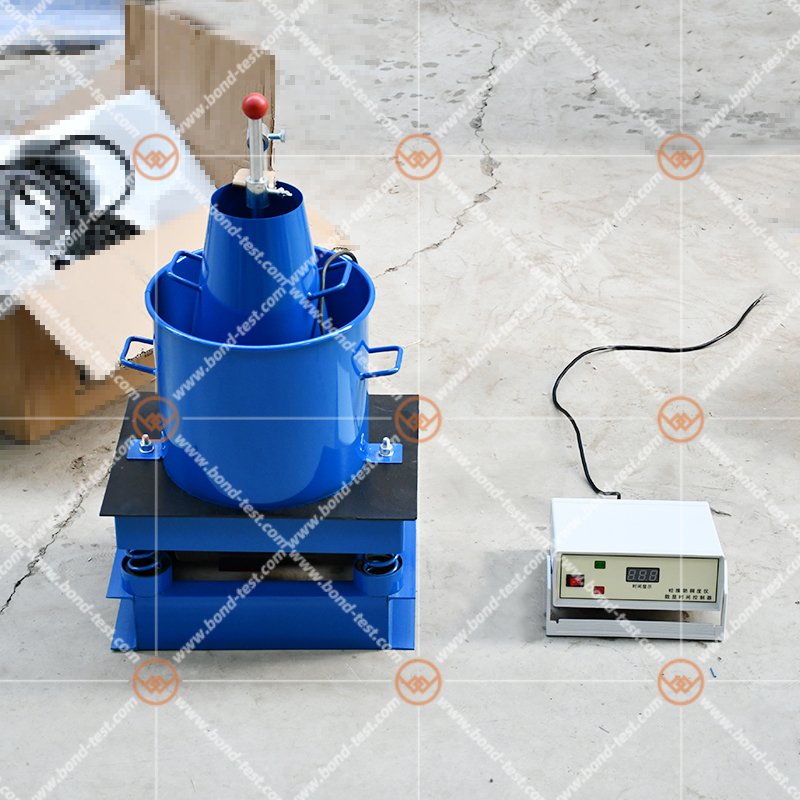

The digital concrete Weibo consistency meter is designed and manufactured in
accordance with the national standards of the People’s Republic of China GBJ800,
JG3043, ASTMC143, and BS1881. On the basis of following the original standards, it

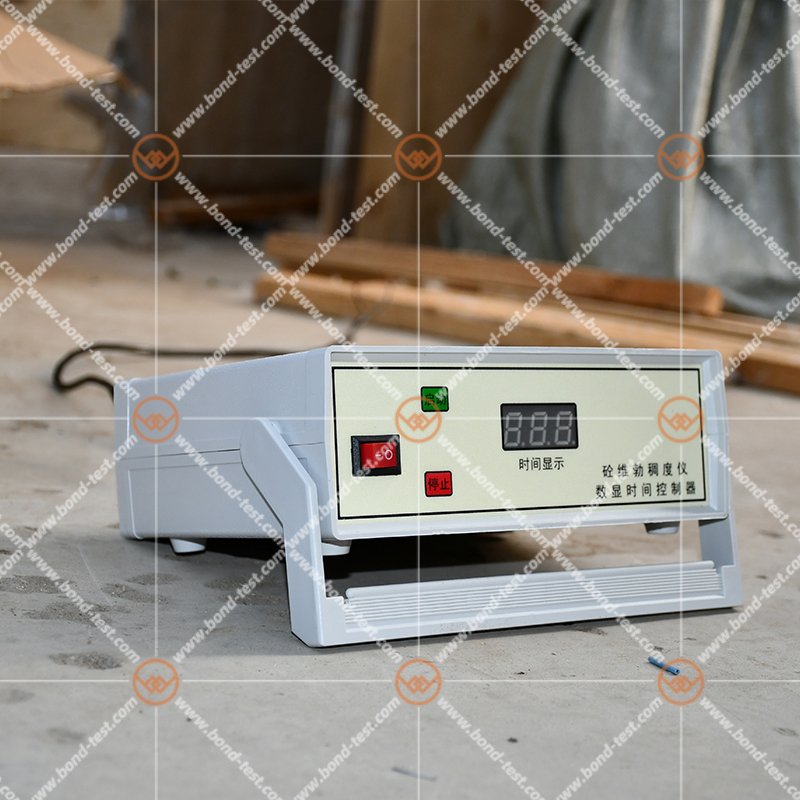

actively uses electronic timing technology to work synchronously with the vibration
table, automatically Timing, thereby completely eliminating the human error in the
past timing process with a stopwatch, and improving the accuracy of the measured
consistency of the concrete mixture. It is an indispensable measuring instrument in the
process of controlling the quality of the concrete mixture in the construction industry.
It is mainly used to measure the Weibo consistency of concrete mixture. It determines
the consistency value of the concrete mixture based on the length of the mixing time
(seconds). It is suitable for the maximum particle size of bone particles not greater
than 40mm, and the Weibo consistency. Determination of concrete mix consistency
between 5 and 10 seconds.
(1) Slump cylinder: top inner diameter 100±2mm
Bottom inner diameter 200±2mm Barrel height 300±2mm
(2) Container: inner diameter 240±5mm, inner height 200±2mm
(3) Vibrator frequency: 3000±200 times/min
(4) Vibration table amplitude (with empty container) 0.5±0.10mm
(5) Motor power: 250 watts
(6) Timing range: 0.1-99.9 seconds
(7) Overall dimensions L×b×hmm 380×520×870mm
(8) Weight
